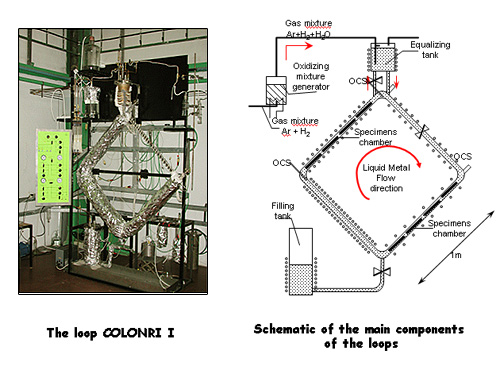

COLONRI I & II
(NRI, Czech Republic)The natural convectional loops in the NRI, CZ, were designed for short/medium-term corrosion testing in liquid Pb-Bi and Pb (respectively).
| Operation fluid | PbBi |
| Temperature Max T between the two test sections Flow rate Number of test sections Test section diameter Total electric power LBE purity OCS (Oxygen Control System) Loop Material |
Max 550°C 150°C Max 2 cm/s 2 2,5 cm 4 kW 99,5% Yes AISI 321 |
COLONRI II technical specifications
| Operation fluid | Pb |
| Temperature Max T between the two test sections Flow rate Number of test sections Test section diameter Total electric power Pb purity OCS (Oxygen Control System) Loop Material |
Max 600°C 150°C Max 2 cm/s 2 2,5 cm 5 kW 99,5% Yes AISI 321 |

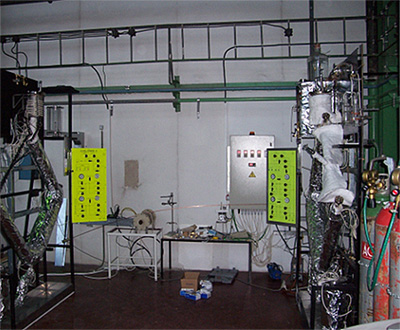

COLNRI I & II in their hall
